Performance Front Kit – 78775


Part #: 78775

Product Description

Get your 2019-2023 Toyota Corolla Hatchback and 2020-2023 Corolla Sedan to the perfect stance with Air Lift Performance’s front air spring suspension kit. This kit lowers your suspension without sacrificing the high-quality ride and feel.

The kit features progressive rate, double bellows air springs placed over a high-performance monotube, and threaded body shocks. With 30 levels of damping adjustability, the shocks allow for a vast range of customization, from super soft to race car stiff.

These elements work together to provide a comfortable ride and superior body support while allowing the vehicle to air out to 90mm (3.5”) from stock in the front, making it impossible to go unnoticed. Still, drop isn’t enough.

As the leader in air suspension products for over 70 years, Air Lift Performance is committed to delivering quality parts that last; with a one-year, unlimited mileage warranty and our excellent customer service and technical support, you can purchase this kit with peace of mind.

Kit Features

  • Drop = 90mm/3.5″
  • 30-level damping adjustment with a huge range from super soft to racecar stiff.
  • Maximized wheel travel for excellent ride characteristics over traditional coil spring lowering.
  • Progressive rate springs allow for a lower ride height than coils and excellent handling balance.
  • High-quality monotube shocks that provide more consistency during hard driving or bumpy road conditions.
  • All shocks dyno-tested.
  • Air suspension is lighter than OEM coil suspension, reducing unsprung mass for improved ride and handling.
  • Adjustable lower mounts allow shock height to be changed independently of pressure so the user can dial-in preferred pressure/ride comfort combination.
  • Rig-tested components to over 1 million cycles to ensure long life and performance.

Modifications Required: NONE

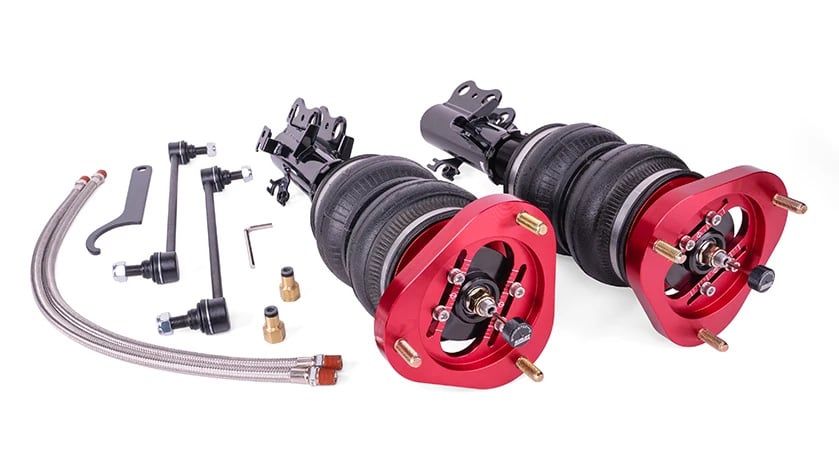

Included with Each Kit

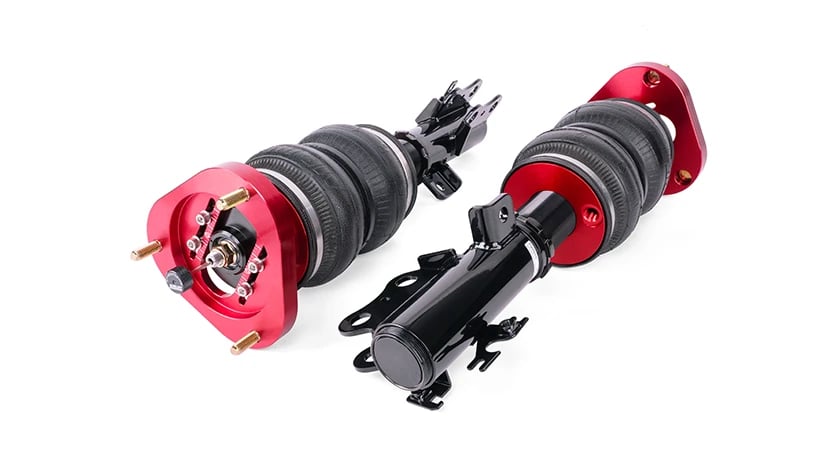

  • Pair of front air-over shocks with 30-level damping adjustment

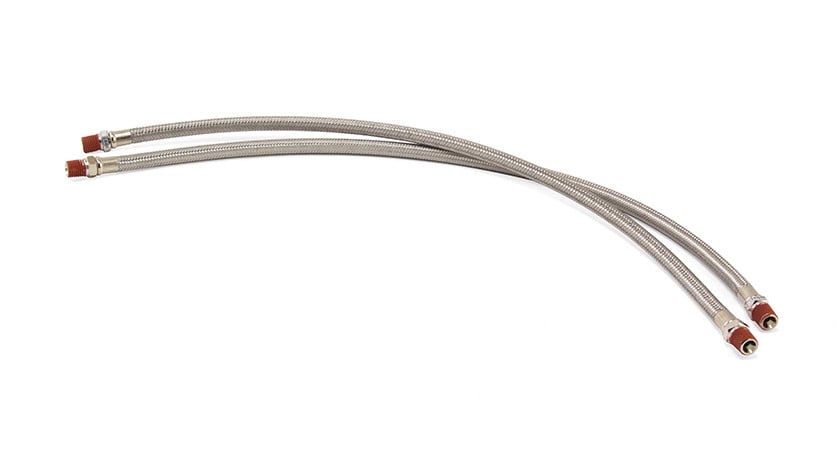

  • Braided stainless steel leader hoses
  • 1/4″ PTC fittings
  • All mounting hardware
  • Detailed instruction manual
  • Air Lift’s 1-year warranty and excellent customer support

CALIFORNIA WARNING: Cancer and Reproductive Harm -

  • This kit features:

    • 90mm/3.5" Drop
    • Proprietary Bolt-in Camber Plates
    • 30-Level Adjustable Damping

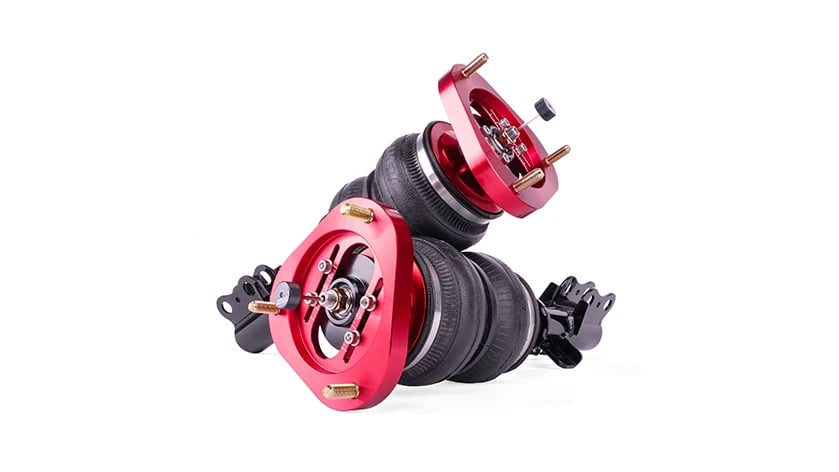

    • Double Bellows Progressive Rate Springs
    • High Performance Monotube Strut
    • High Quality Spherical Ball Upper Mounts
    • Braided Stainless Steel Leader Air Hoses
    • Threaded, Adjustable Strut Mounts
    Tap to View Kit Features

Additional Information

Installation Manual Download Manual
User Guide Download User Guide
Weight: 32.7 lb
Width: 14.88 in
Depth: 23.5 in
Height: 8 in
