Performance Front Kit – 78105


Part #: 78105

Product Description

Get your Acura TLX to the perfect stance. At Air Lift Performance, we ensure suspension gets low without sacrificing the high-quality ride and feel. The Acura TLX kit features a progressive rate, sleeve-style air springs placed over monotube, and threaded body shocks. With 30 levels of damping adjustability, the shocks allow for a vast range of customization, from super soft to race car stiff. These elements work together to provide a comfortable ride and superior body support while allowing the vehicle to air out and reach for the ground. With the ability to air out 130mm (5.1″) from stock in the front, it is impossible to go unnoticed. But the superior drop was not enough for us. As the leader in air suspension products for over 70 years, Air Lift Performance is committed to delivering quality parts that last, and with a one-year, unlimited-mileage warranty and Air Lift Performance’s excellent customer service and technical support, you can purchase this kit with peace of mind.

Kit Features

  • Drop = 130mm/5.1″
  • 30 clicks of damping adjustment for fine-tuning your ride and handling
  • Maximized wheel travel for excellent ride characteristics over traditional coil spring lowering.
  • Progressive rate springs allow for a lower ride height than coils and excellent handling balance.
  • High-quality monotube dampers dissipate heat faster than twin-tube dampers, providing more consistent damping during hard driving or bumpy road conditions.
  • All struts dyno-tested and matched in pairs before shipping.
  • Air suspension is lighter than OEM coil suspension, reducing unsprung mass for improved ride and handling.
  • Adjustable lower perches allow ride height to be changed independently of pressure so user can dial-in preffered pressure/ride height combination.
  • Rig-tested components to over 1 million cycles to ensure long life and performance.

Modifications Required: NONE

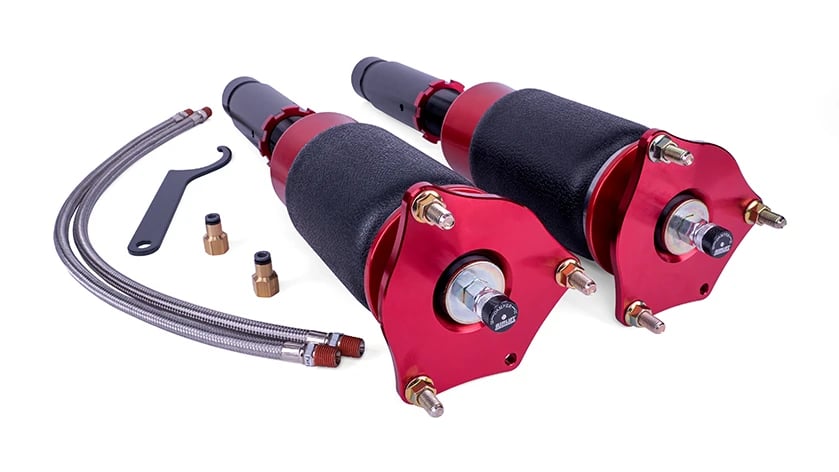

Included with Each Kit

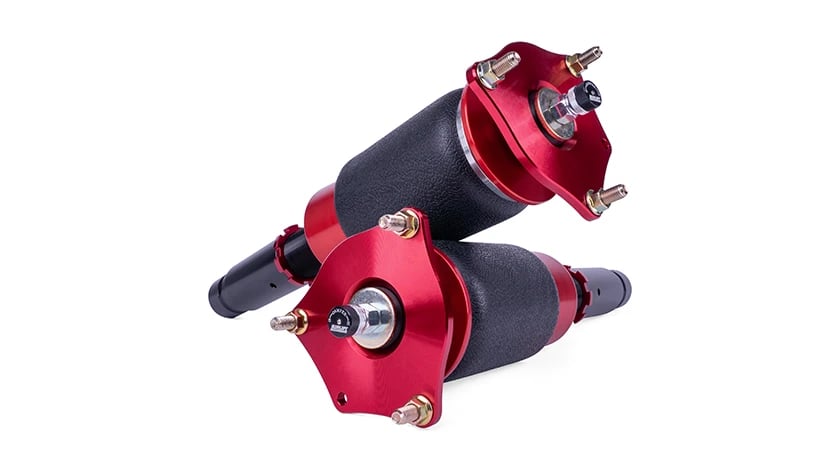

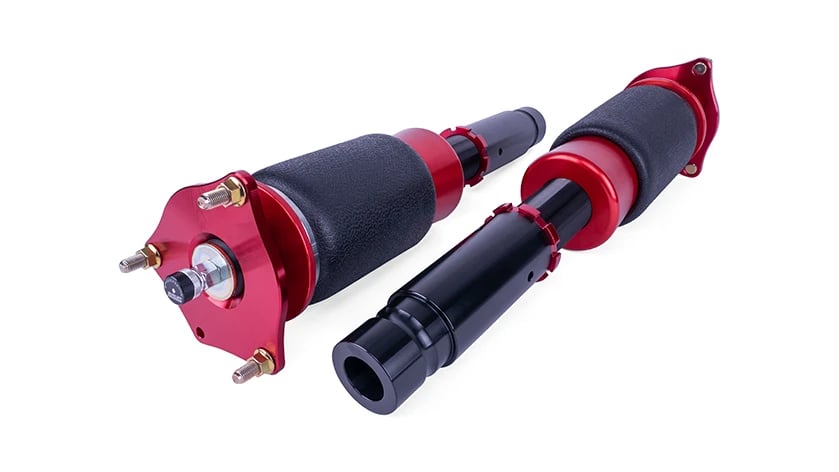

  • Pair of front air-over shocks with 30-level damping adjustment

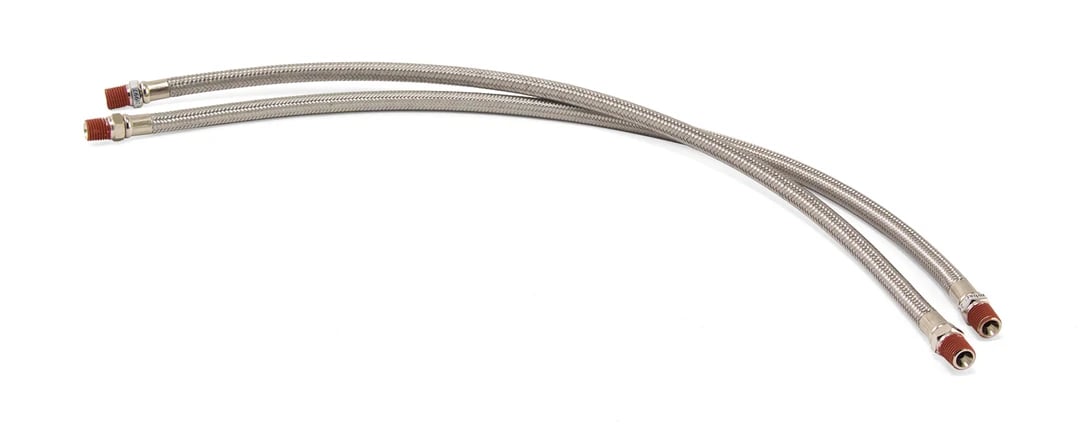

  • Braided stainless steel leader hoses
  • 1/4″ PTC fittings
  • All mounting hardware
  • Detailed instruction manual
  • Air Lift’s 1-year warranty and excellent customer support

CALIFORNIA WARNING: Cancer and Reproductive Harm -

  • This kit features:

    • 130mm/5.1" Drop
    • 30-Level Adjustable Damping
    • High Performance Monotube Shocks
    • Rubber Upper Mounts
    • No Modifications Necessary for Installation
    • Progressive Rate Sleeve Air Springs
    • Braided Stainless Steel Leader Air Hoses
    • Threaded, Adjustable Shocks Mounts
    Tap to View Kit Features

Additional Information

Installation Manual Download Manual
User Guide Download User Guide
Weight: 23.596 lb
Width: 14.88 in
Depth: 23.5 in
Height: 8 in
